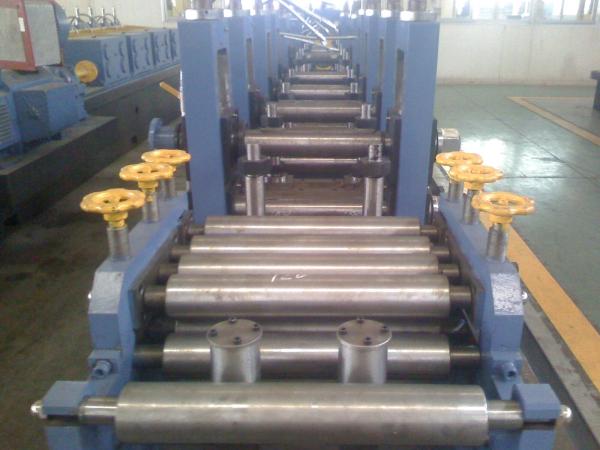

    Straight Seam Steel Pipe , High Frequency Welded Pipe Forming Machine

    Ask Lasest Price
    Brand Name : ZHONG YUE
    Model Number : ZY-76
    Certification : CE/ISO
    Price : Negotiation according to different Model
    Payment Terms : T/T+L/C
    Supply Ability : 150 Set per year
    Delivery Time : 3 month to 6 month
    • Product Details
    • Company Profile

    Straight Seam Steel Pipe , High Frequency Welded Pipe Forming Machine

    ZY76 straight seam steel pipe, high freqency steel pipe, HF welded steel pipe milling machine


    1:Summary


    The steel pipe production line is designed for the round pipe, the rectangular and square pipe by material of cold/hot-rolled coil etc. It could be used at the metallurgy, construction, transportation, machinery, automobile industry. Adopting “W” forming type, it could make much more reasonable force, and much more perfect forming shape at each stand etc


    2: Applicable material

    (1)cold-rolled steel strip

    (2)Material: Low-carbon steel, low alloy steelδs≤345Mpa,δb≤610Mpa

    (3)The thickness of steel strip: 1.2-3.75mm

    (4)The width of steel strip: 90-280m

    (5)I.D. of steel coil: Φ450-Φ550mm

    (6)O.D. of steel coil: Φ800-Φ1600mm

    (7)Maximum weight coil: 3500kgs


    3: Dimension range of processing steel pipe

    (1) O.D.: Φ31.8-Φ88.9mm

    (2)Wall thickness: 1.2-3.75mm

    (3)Length: 4-8M


    Straight Seam Steel Pipe , High Frequency Welded Pipe Forming Machine


    4: Production process table


    Straight Seam Steel Pipe , High Frequency Welded Pipe Forming Machine


    5: Pipe machine specification

    Accordingly to the market demands.

    We are given the standard models as blew, and this is for your reference only, the production range and main technical can be adjustable suppose your company have special requirement.


    Pipe machine Specification
    Mill ModelOD range (mm)Thickness range(mm)Line Speed(m/min)
    ZY-167.6-160.3-1.0120
    ZY-2010-25.40.3-1.5120
    ZY-3212.7-38.10.6-1.8120
    ZY-4516-50.80.7-2.0110
    ZY-5020-63.50.8-3.090
    ZY-6025.4-76.21.0-3.280
    ZY-7631.8-88.91.2-3.7580
    ZY-8933.4-101.61.2-4.575
    ZY-12550.8-1302.0-5.060
    ZY-16576.2-1682.0-6.050
    ZY-21988.9-2192.0-8.050
    ZY-27389-2733.0-12.040
    ZY-32589-3253.0-12.740
    ZY-406114-4064.0-16.040
    ZY-508219-5084.0-19.140
    ZY-610273-6104.0-19.140
    ZY-660273-6604.0-2240
